Homelab , when small is big

When I started getting interested on the IT world , i've usually kept all my devices on 24 h to 24.

The first labs was an impressive tower in '99 with a huge amount of disk and memory banks, a good cpu cooled by a giant copper heatsink combined with a 12cm fan.
All those components were quite similar to a helicopter noise during the night.

The evolution of the lab than , changed a lot year by year , not only reaching a good level of noise but mostly to be cost effective hardware that guarantee new a semplificate production environment.

Now some goals has changed compared with the '99 approach so let's summarize the lab expectations:

  • Cheap hardware
  • Noiseless
  • TDP under 20w
  • 24/24 uptime
  • Virtualization support
  • Enough to have a Kubernetes installation
  • Backup solution
  • Automation ready



Let's now explain the needs behind,
i'd like to have a solution that is able to cover all my needs in terms of hobby and experiments, i don't need power , since i take care to the goodness of the solution instead the absolute performance.

Hardware

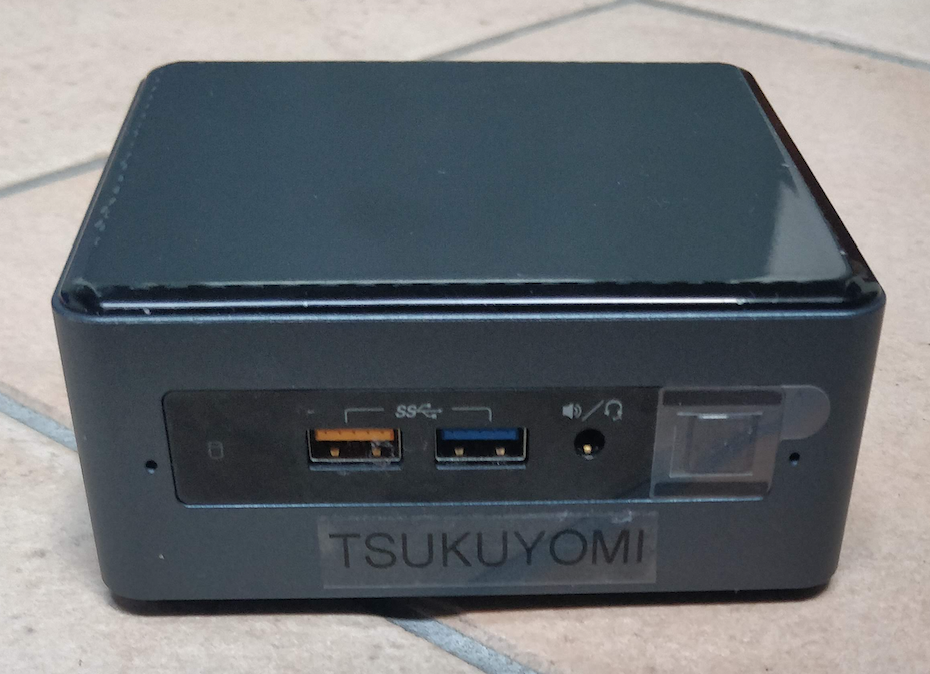

Base: Intel® NUC NUC7PJYH

RAM: even if the website is reporting 8gb max... this is not true

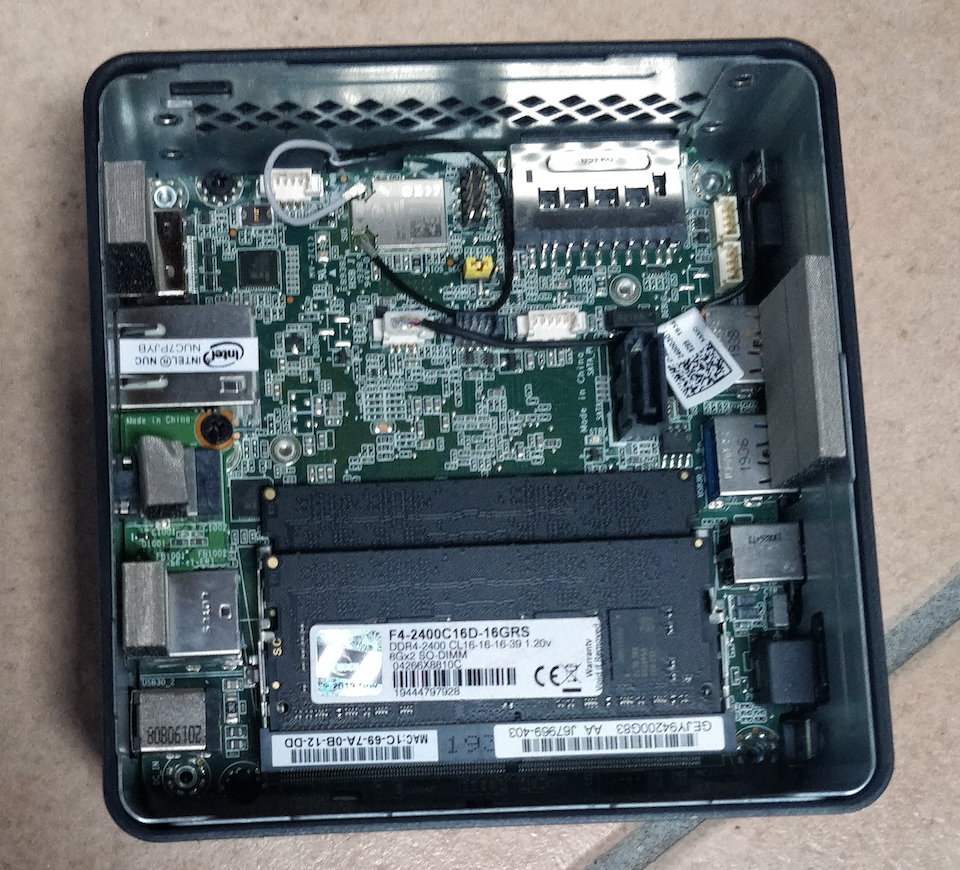

on my installation i have 16GB with G.Skill Ripjaws SO-DIMM 16GB DDR4-2400Mhz 2x8GB

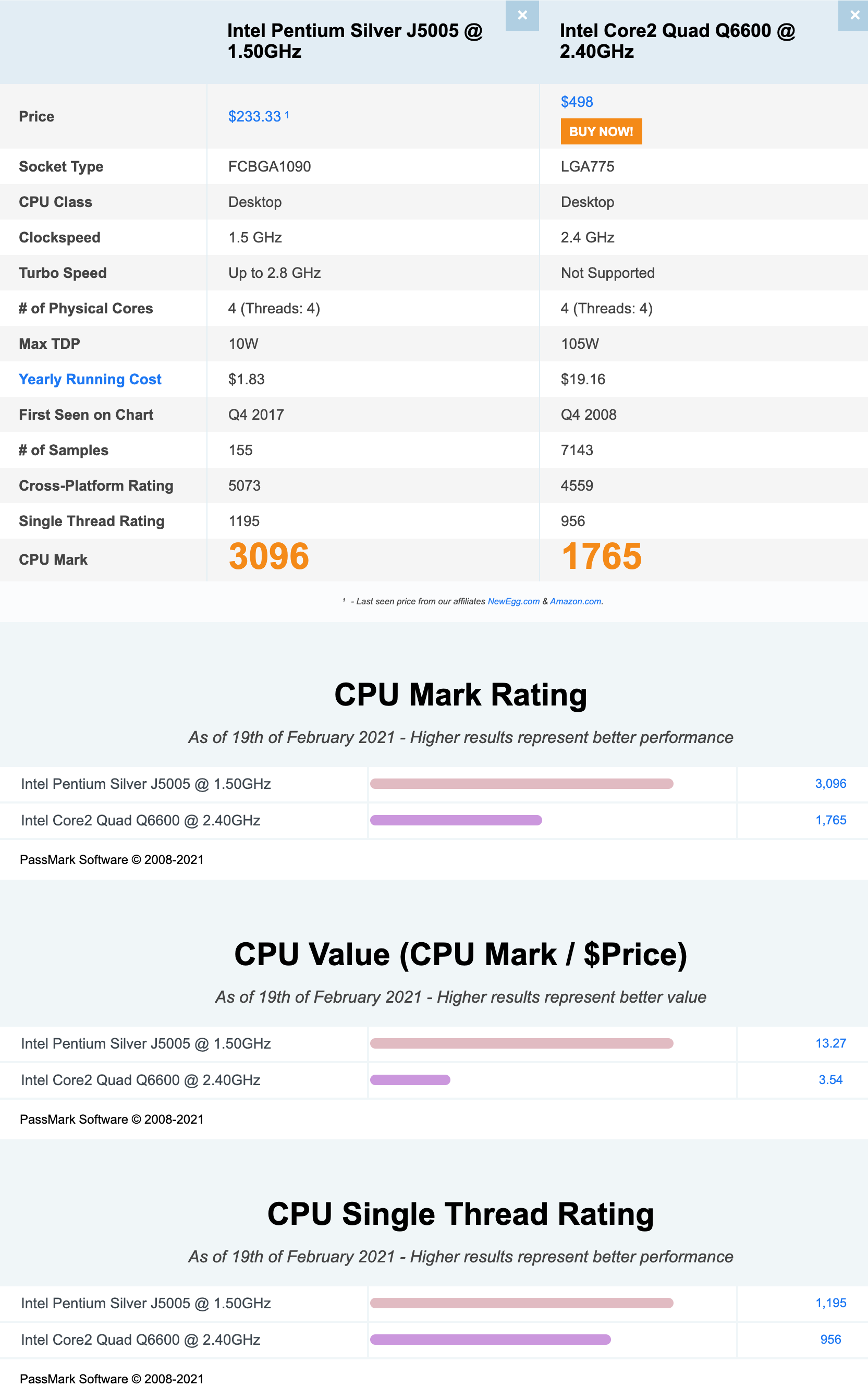

CPU: j5005 i thinks is the best tdp/performance (here compared to the old q6600 the first intel quadcore ever)

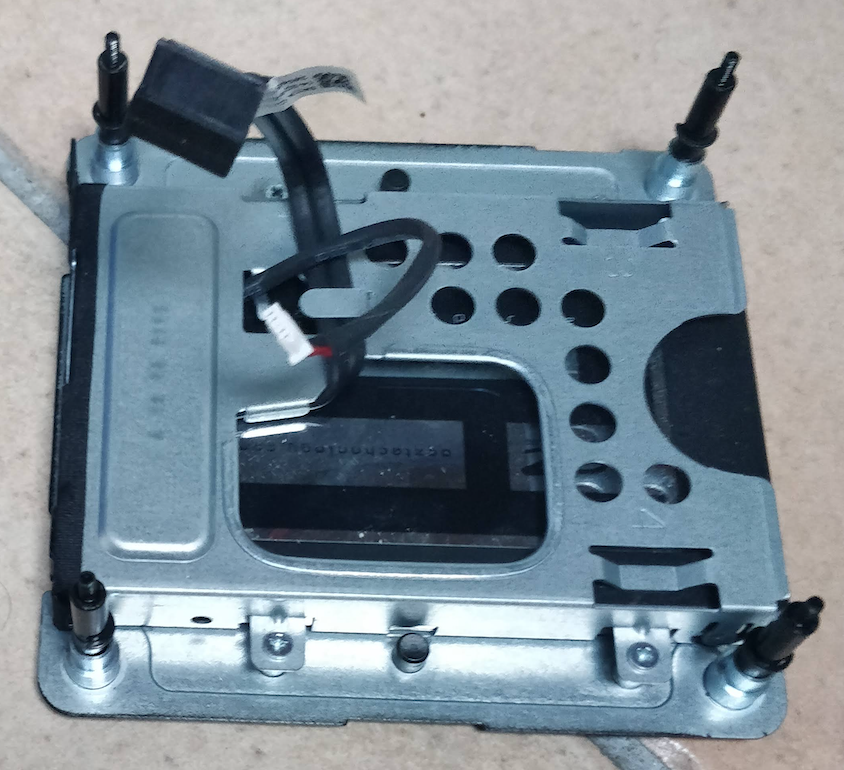

DISK: 250gb with ocz vertex4 are a good starting point



Software

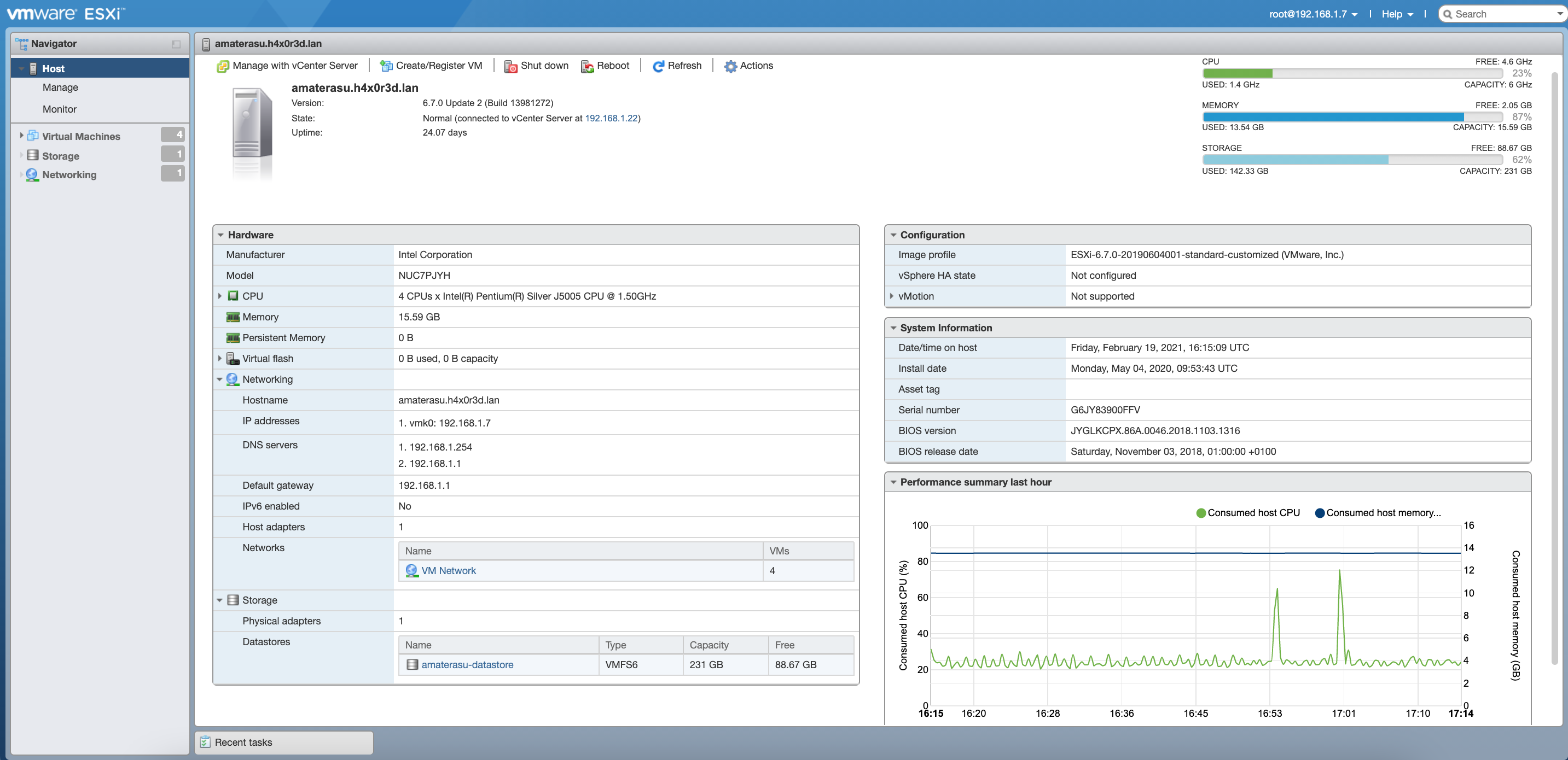

Base os vmware esxi 6.7 (free/essential)

Now:

Why vmware?
Because the virtualization stack is really important to have an abstraction layer ,
see this post

Why 6.7?
Because the vmkernel in 7.0 is changed and is not possible import external network driver (needed for this nuc model), even if there is a trick with usb network adapter and https://flings.vmware.com/usb-network-native-driver-for-esxi vmware labs usb drivers.

How build the image with Realtek network card ?
First of all you need a windows :( , than you should need to identify your hardware driver , in my case https://vibsdepot.v-front.de/wiki/index.php/Net55-r8168 and at the end you need to rebuild the image with ESXi-Customizer-PS

What we can do with this "toy"?
Well more or less everything you are doing in your datacenter, using packer and ansible for the installation and vm configuration , you can boostrap a k3s cluster or a microk8s standalone kubernetes, few virtualmachines and so on.

But is small compared to a server !1!1!
different needs , different size ( but same mindset in terms of reliability , flexibility , usability)... however this is my current usage

4 VMS:

  • microk8s installation
  • monitoring infrastructure
  • windows active directory
  • console vm (usually used as ephemeral environment)

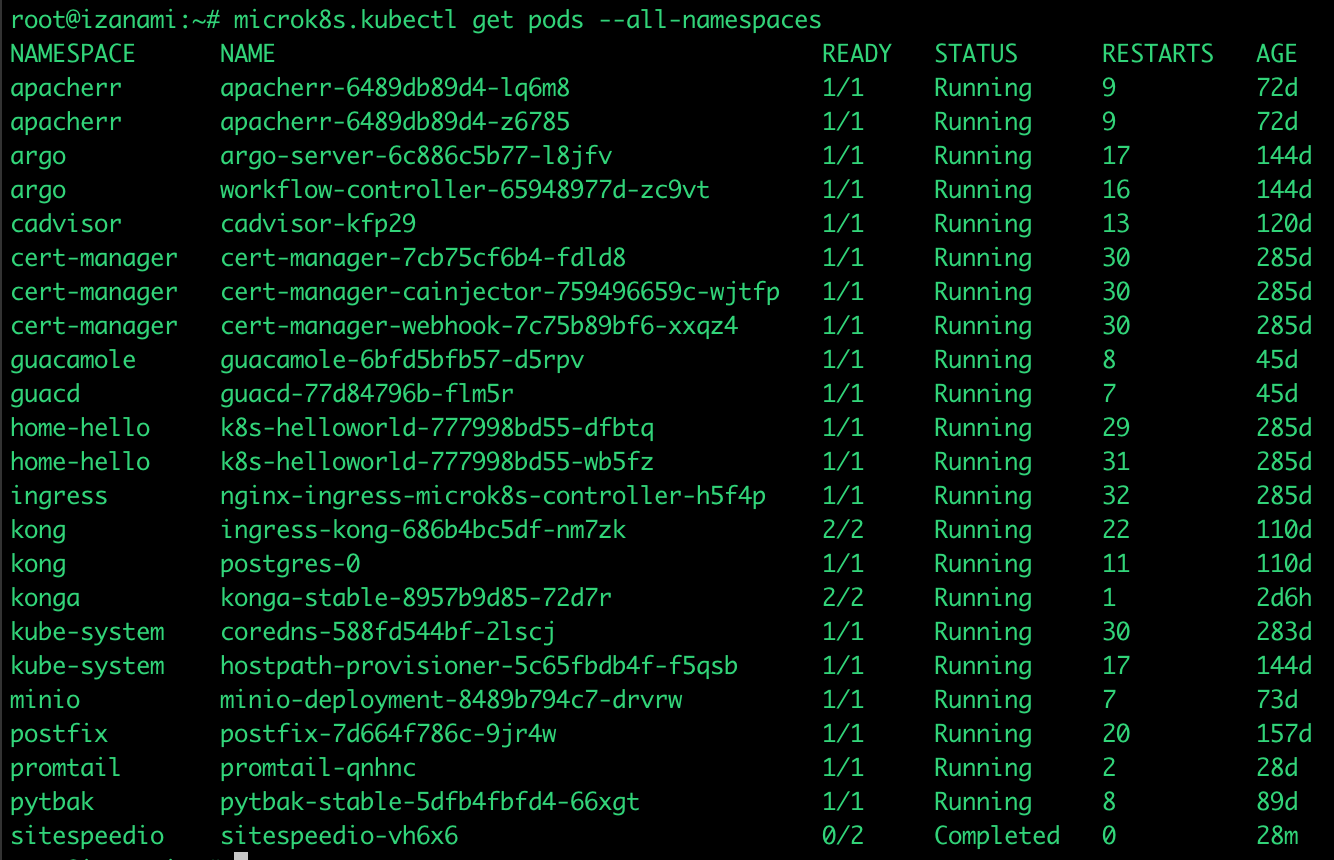

If you have some doubts about the possibility to run kubernetes in a toy , is the base that i used for all my posts



Monitoring

Well again grafana and influxdb are supporting me

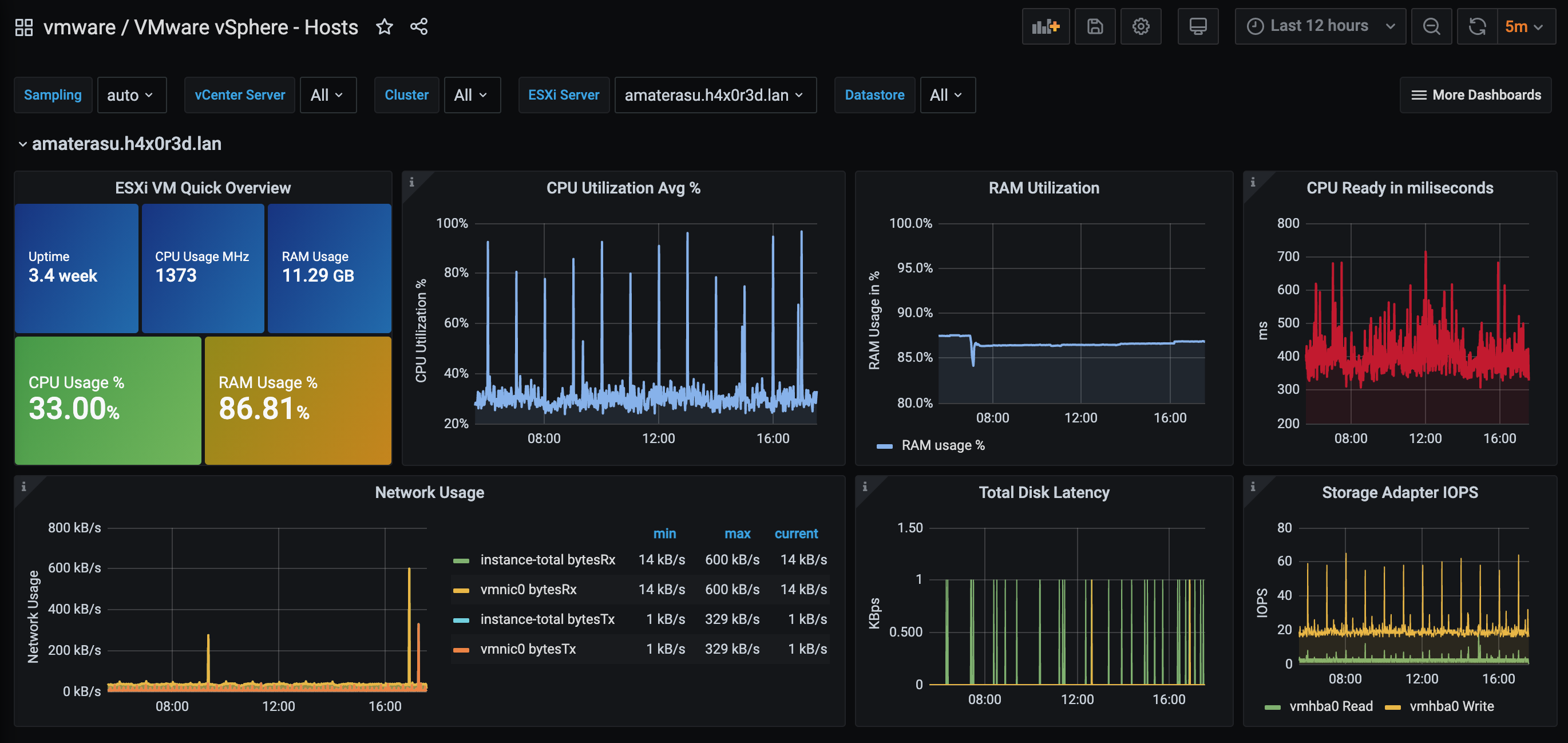

HOST

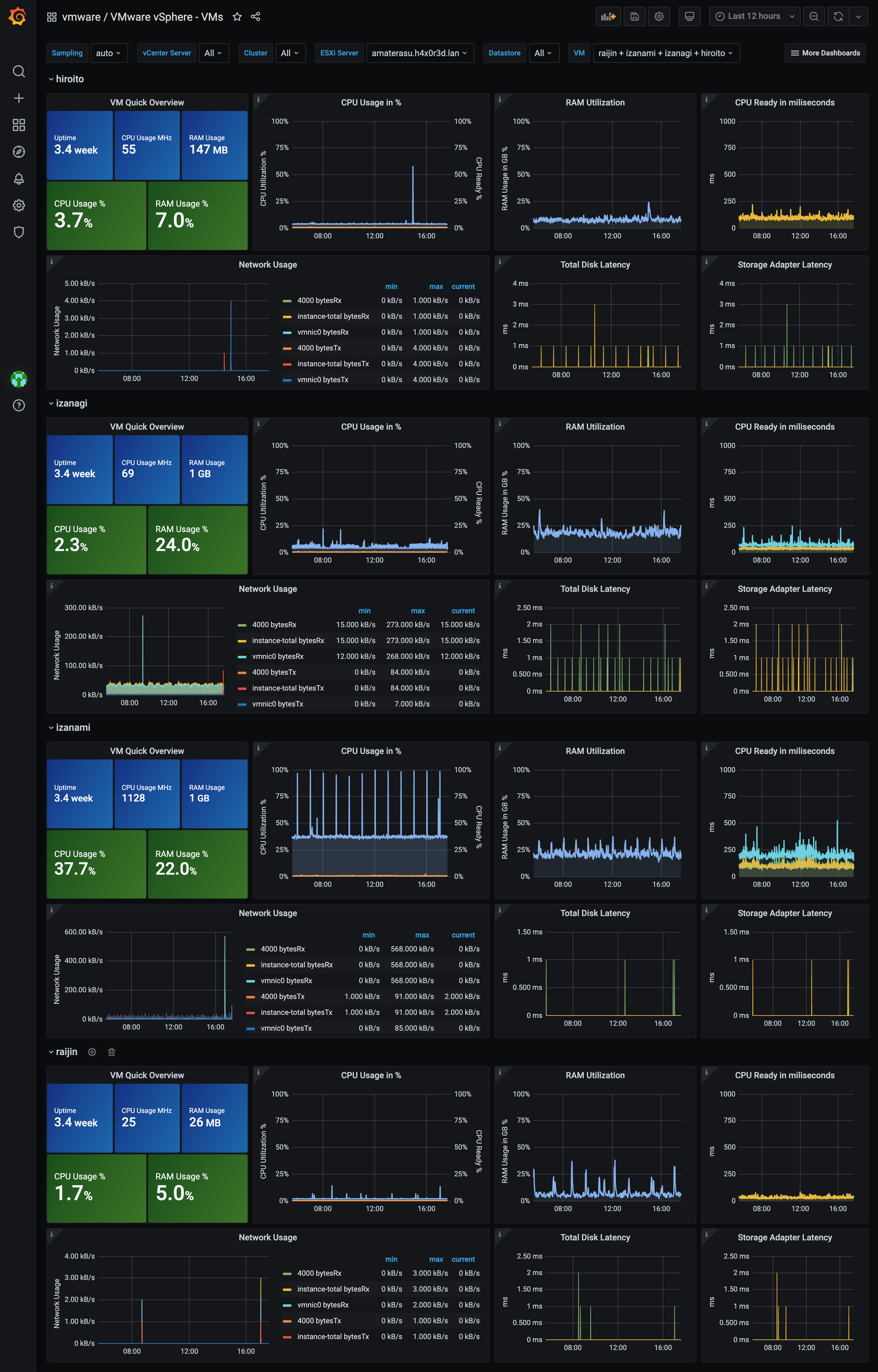

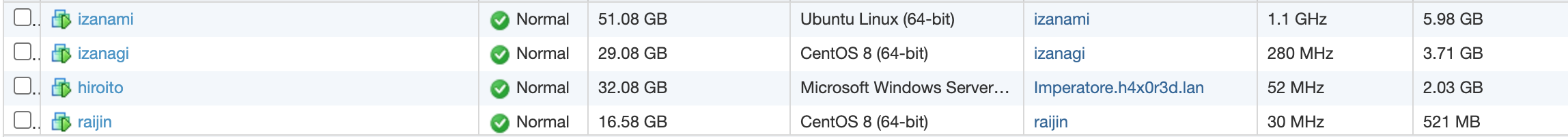

VMS



Backup

Why backup?
Because even if the env is automated, some data are inside the vms and i'd like to play with the env and if needed restore the previous snapshot.

Again another free tool is helping me https://github.com/lamw/ghettoVCB

It's a quite simple script that i used for non production environment since the beginning.

In the main path i've created a script folder with ghetto inside and other stuff like packer firewall rules

[root@amaterasu:/vmfs/volumes/5eafe677-1260d7e8-2521-94c691a54f7d/script] ls -la
total 2240
drwxr-xr-x    1 root     root         73728 May  6  2020 .
drwxr-xr-t    1 root     root         77824 Dec 28 10:51 ..
-rw-r--r--    1 root     root           577 May  4  2020 email.xml
-rwxr-xr-x    1 root     root         17207 May  4  2020 ghettoVCB-restore.sh
-rw-r--r--    1 root     root           309 May  4  2020 ghettoVCB-restore_vm_restore_configuration_template
-rw-r--r--    1 root     root           356 May  4  2020 ghettoVCB-vm_backup_configuration_template
-rw-r--r--    1 root     root           832 May 10  2020 ghettoVCB.conf
-rwxr-xr-x    1 root     root         72122 May  4  2020 ghettoVCB.sh
-rwxr-xr-x    1 root     root           404 May 12  2020 init.sh
-rw-r--r--    1 root     root           372 May  4  2020 packer.xml

The init.sh files should be added on local.sh to have it running on all machine startup
[root@amaterasu:/vmfs/volumes/5eafe677-1260d7e8-2521-94c691a54f7d/script] cat /etc/rc.local.d/local.sh
#!/bin/sh

# local configuration options

# Note: modify at your own risk!  If you do/use anything in this
# script that is not part of a stable API (relying on files to be in
# specific places, specific tools, specific output, etc) there is a
# possibility you will end up with a broken system after patching or
# upgrading.  Changes are not supported unless under direction of
# VMware support.

# Note: This script will not be run when UEFI secure boot is enabled.

sh -x /vmfs/volumes/amaterasu-datastore/script/init.sh

exit 0

... on the init file you need to apply all changes to have the ghetto running in crontab

[root@amaterasu:/vmfs/volumes/5eafe677-1260d7e8-2521-94c691a54f7d/script] cat init.sh
#!/bin/bash
cp /vmfs/volumes/amaterasu-datastore/script/email.xml /etc/vmware/firewall/
cp /vmfs/volumes/amaterasu-datastore/script/packer.xml /etc/vmware/firewall/
esxcli network firewall refresh
echo "0 22 * * 6 /vmfs/volumes/amaterasu-datastore/script/ghettoVCB.sh -a -g /vmfs/volumes/amaterasu-datastore/script/ghettoVCB.conf
" >>  /var/spool/cron/crontabs/root
kill $(cat /var/run/crond.pid)
crond

it is missing only the ghettoVCB.conf configuration that depends on your needs

[root@amaterasu:/vmfs/volumes/5eafe677-1260d7e8-2521-94c691a54f7d/script] cat ghettoVCB.conf
DISK_BACKUP_FORMAT=thin
VM_BACKUP_ROTATION_COUNT=3
POWER_VM_DOWN_BEFORE_BACKUP=0
ENABLE_HARD_POWER_OFF=0
ITER_TO_WAIT_SHUTDOWN=3
POWER_DOWN_TIMEOUT=5
ENABLE_COMPRESSION=0
VM_SNAPSHOT_MEMORY=0
VM_SNAPSHOT_QUIESCE=0
ALLOW_VMS_WITH_SNAPSHOTS_TO_BE_BACKEDUP=0
ENABLE_NON_PERSISTENT_NFS=1
UNMOUNT_NFS=1
NFS_SERVER=192.168.1.13
NFS_VERSION=nfs
NFS_MOUNT=/export/backup
NFS_LOCAL_NAME=nfs_storage_backup
NFS_VM_BACKUP_DIR=amaterasu
ENABLE_NFS_IO_HACK=1
NFS_IO_HACK_LOOP_MAX=10
NFS_IO_HACK_SLEEP_TIMER=60
SNAPSHOT_TIMEOUT=15
EMAIL_ALERT=0
EMAIL_LOG=1
EMAIL_SERVER=smtp.k8s.it
EMAIL_SERVER_PORT=25
EMAIL_DELAY_INTERVAL=1
EMAIL_USER_NAME=
EMAIL_USER_PASSWORD=
[email protected]
[email protected]
[email protected]
WORKDIR_DEBUG=0
VM_SHUTDOWN_ORDER=
VM_STARTUP_ORDER=

And ... well thats all ... you have your weekly snapshot
2021-02-13 22:00:00 -- info: ============================== ghettoVCB LOG START ==============================

2021-02-13 22:00:01 -- info: CONFIG - USING GLOBAL GHETTOVCB CONFIGURATION FILE = /vmfs/volumes/amaterasu-datastore/script/ghettoVCB.conf
2021-02-13 22:00:01 -- info: CONFIG - VERSION = 2019_01_06_4
2021-02-13 22:00:01 -- info: CONFIG - GHETTOVCB_PID = 2250208
2021-02-13 22:00:01 -- info: CONFIG - VM_BACKUP_VOLUME = /vmfs/volumes/nfs_storage_backup/amaterasu
2021-02-13 22:00:01 -- info: CONFIG - ENABLE_NON_PERSISTENT_NFS = 1
2021-02-13 22:00:01 -- info: CONFIG - UNMOUNT_NFS = 1
2021-02-13 22:00:01 -- info: CONFIG - NFS_SERVER = 192.168.1.13
2021-02-13 22:00:01 -- info: CONFIG - NFS_VERSION = nfs
2021-02-13 22:00:01 -- info: CONFIG - NFS_MOUNT = /export/backup
2021-02-13 22:00:01 -- info: CONFIG - VM_BACKUP_ROTATION_COUNT = 3
2021-02-13 22:00:01 -- info: CONFIG - VM_BACKUP_DIR_NAMING_CONVENTION = 2021-02-13_22-00-00
2021-02-13 22:00:01 -- info: CONFIG - DISK_BACKUP_FORMAT = thin
2021-02-13 22:00:01 -- info: CONFIG - POWER_VM_DOWN_BEFORE_BACKUP = 0
2021-02-13 22:00:01 -- info: CONFIG - ENABLE_HARD_POWER_OFF = 0
2021-02-13 22:00:01 -- info: CONFIG - ITER_TO_WAIT_SHUTDOWN = 3
2021-02-13 22:00:01 -- info: CONFIG - POWER_DOWN_TIMEOUT = 5
2021-02-13 22:00:01 -- info: CONFIG - SNAPSHOT_TIMEOUT = 15
2021-02-13 22:00:01 -- info: CONFIG - LOG_LEVEL = info
2021-02-13 22:00:01 -- info: CONFIG - BACKUP_LOG_OUTPUT = /tmp/ghettoVCB-2021-02-13_22-00-00-2250208.log
2021-02-13 22:00:01 -- info: CONFIG - ENABLE_COMPRESSION = 0
2021-02-13 22:00:01 -- info: CONFIG - VM_SNAPSHOT_MEMORY = 0
2021-02-13 22:00:01 -- info: CONFIG - VM_SNAPSHOT_QUIESCE = 0
2021-02-13 22:00:01 -- info: CONFIG - ALLOW_VMS_WITH_SNAPSHOTS_TO_BE_BACKEDUP = 0
2021-02-13 22:00:01 -- info: CONFIG - VMDK_FILES_TO_BACKUP = all
2021-02-13 22:00:01 -- info: CONFIG - VM_SHUTDOWN_ORDER =
2021-02-13 22:00:01 -- info: CONFIG - VM_STARTUP_ORDER =
2021-02-13 22:00:01 -- info: CONFIG - RSYNC_LINK = 0
2021-02-13 22:00:01 -- info: CONFIG - BACKUP_FILES_CHMOD =
2021-02-13 22:00:01 -- info: CONFIG - EMAIL_LOG = 1
2021-02-13 22:00:01 -- info: CONFIG - EMAIL_SERVER = smtp.xxs.it
2021-02-13 22:00:01 -- info: CONFIG - EMAIL_SERVER_PORT = 25
2021-02-13 22:00:01 -- info: CONFIG - EMAIL_DELAY_INTERVAL = 1
2021-02-13 22:00:01 -- info: CONFIG - EMAIL_FROM = [email protected]
2021-02-13 22:00:01 -- info: CONFIG - EMAIL_TO = [email protected]
2021-02-13 22:00:01 -- info: CONFIG - WORKDIR_DEBUG = 0
2021-02-13 22:00:01 -- info: CONFIG - ENABLE NFS IO HACK = 1
2021-02-13 22:00:01 -- info: CONFIG - NFS IO HACK LOOP MAX = 10
2021-02-13 22:00:01 -- info: CONFIG - NFS IO HACK SLEEP TIMER = 60
2021-02-13 22:00:01 -- info: CONFIG - NFS BACKUP DELAY = 0

2021-02-13 22:00:06 -- info: Initiate backup for izanami
2021-02-13 22:00:06 -- info: Creating Snapshot "ghettoVCB-snapshot-2021-02-13" for izanami
2021-02-13 22:09:55 -- info: Removing snapshot from izanami ...
2021-02-13 22:10:56 -- info: Slept 60 seconds to work around NFS I/O error
2021-02-13 22:10:56 -- info: Backup Duration: 10.83 Minutes
2021-02-13 22:10:56 -- info: Successfully completed backup for izanami!

2021-02-13 22:11:02 -- info: Initiate backup for izanagi
2021-02-13 22:11:02 -- info: Creating Snapshot "ghettoVCB-snapshot-2021-02-13" for izanagi
2021-02-13 22:16:37 -- info: Removing snapshot from izanagi ...
2021-02-13 22:17:37 -- info: Slept 60 seconds to work around NFS I/O error
2021-02-13 22:17:37 -- info: Backup Duration: 6.58 Minutes
2021-02-13 22:17:37 -- info: Successfully completed backup for izanagi!

2021-02-13 22:17:43 -- info: Initiate backup for hiroito
2021-02-13 22:17:43 -- info: Creating Snapshot "ghettoVCB-snapshot-2021-02-13" for hiroito
2021-02-13 22:23:55 -- info: Removing snapshot from hiroito ...
2021-02-13 22:24:56 -- info: Slept 60 seconds to work around NFS I/O error
2021-02-13 22:24:56 -- info: Backup Duration: 7.22 Minutes
2021-02-13 22:24:56 -- info: Successfully completed backup for hiroito!

2021-02-13 22:25:01 -- info: Initiate backup for raijin
2021-02-13 22:25:01 -- info: Creating Snapshot "ghettoVCB-snapshot-2021-02-13" for raijin
2021-02-13 22:26:21 -- info: Removing snapshot from raijin ...
2021-02-13 22:27:21 -- info: Slept 60 seconds to work around NFS I/O error
2021-02-13 22:27:21 -- info: Backup Duration: 2.33 Minutes
2021-02-13 22:27:21 -- info: Successfully completed backup for raijin!

2021-02-13 22:27:54 -- info: ###### Final status: All VMs backed up OK! ######

2021-02-13 22:27:54 -- info: ============================== ghettoVCB LOG END ================================

Price

nuc7PJYH ~ 160€
G.Skill Ripjaws SO-DIMM 16GB DDR4-2400Mhz 2x8GB ~ 60€
hard disk ssd 250db ~ 40€

Is not cheap as a raspberry 4 but it's 10 time more performant and guarantee a full server experience with the possibility to play and grow your skills and challenges
