application rate limit

11 Feb 2023

For some reasons that i will share later on in a dedicated discussion, i had the need to create a rate limit inside the application.

For this scenario we have 2 greddy options:

have the logic inside the app , in a code way
have a sidecar container that has this role

the code way

This is the simplest one but has some side effects,
first of all can be reaused just for the same language apps.
Same as before , having this rate inside the app , we are creating a role inside this app
that can be good or bad depending of the strategy applied,
imagine the request interceptor for example will consume cpu and may false metrics if we are not aware of it.

But anyway , it can be a solution , so in a simple python code you have to add the following for example
(i will use the usual app i'm using for labs stuff)
I'ts Flask so you just have to add the following:
in requirements.txt --> Flask-Limiter

Inside your code , import the libraries

from flask_limiter import Limiter
from flask_limiter.util import get_remote_address

Enable the limiter

limiter = Limiter(
	get_remote_address,
	app=app,
	storage_uri="memory://",
)

And add the limiting option in the route u'd like to rate

@limiter.limit("28 per second")

Handson

Just moved from @limiter.limit("28 per second") to @limiter.limit("2 per second")

$ docker build -t lgirardi/pytbakrated .
[+] Building 11.1s (9/9) FINISHED
 => [internal] load build definition from Dockerfile                                                                                                                                                                                     0.0s
 => => transferring dockerfile: 34B                                                                                                                                                                                                      0.0s
 => [internal] load .dockerignore                                                                                                                                                                                                        0.0s
 => => transferring context: 2B                                                                                                                                                                                                          0.0s
 => [internal] load metadata for docker.io/library/python:3.9-alpine                                                                                                                                                                     0.6s
 => [internal] load build context                                                                                                                                                                                                        0.0s
 => => transferring context: 4.47kB                                                                                                                                                                                                      0.0s
 => CACHED [1/4] FROM docker.io/library/python:3.9-alpine@sha256:8bda1e9a98fa4e87ff6e3a7682f496532b06fcbae10326a59c8656126051d4df                                                                                                        0.0s
 => [2/4] COPY . /app                                                                                                                                                                                                                    0.0s
 => [3/4] WORKDIR /app                                                                                                                                                                                                                   0.0s
 => [4/4] RUN pip install -r requirements.txt                                                                                                                                                                                            9.9s
 => exporting to image                                                                                                                                                                                                                   0.4s
 => => exporting layers                                                                                                                                                                                                                  0.4s
 => => writing image sha256:583ec19905662414ad6bdb3b0da1042ec799ec46f8a676fac6553364cd02bf1e                                                                                                                                             0.0s
 => => naming to docker.io/lgirardi/pytbakrated

$ docker run -p 5000:5000 lgirardi/pytbakrated
 * Serving Flask app 'app'
 * Debug mode: off
2023-02-11 10:36:06,264 INFO werkzeug MainThread : WARNING: This is a development server. Do not use it in a production deployment. Use a production WSGI server instead.
 * Running on all addresses (0.0.0.0)
 * Running on http://127.0.0.1:5000
 * Running on http://172.17.0.2:5000
2023-02-11 10:36:06,264 INFO werkzeug MainThread : Press CTRL+C to quit

With a simple curl you can check if it's working , so the rate will be triggered if u go over 2 req/sec

$ while true; do curl -I localhost:5000/api/fib/1 && sleep 0.4;done
HTTP/1.1 200 OK
Server: Werkzeug/2.2.2 Python/3.9.16
Date: Sat, 11 Feb 2023 10:37:54 GMT
Content-Type: text/html; charset=utf-8
Content-Length: 1
Vary: Accept-Encoding
Connection: close

HTTP/1.1 200 OK
Server: Werkzeug/2.2.2 Python/3.9.16
Date: Sat, 11 Feb 2023 10:37:54 GMT
Content-Type: text/html; charset=utf-8
Content-Length: 1
Vary: Accept-Encoding
Connection: close

HTTP/1.1 429 TOO MANY REQUESTS
Server: Werkzeug/2.2.2 Python/3.9.16
Date: Sat, 11 Feb 2023 10:37:55 GMT
Content-Type: text/html; charset=utf-8
Content-Length: 117
Vary: Accept-Encoding
Connection: close

HTTP/1.1 200 OK
Server: Werkzeug/2.2.2 Python/3.9.16
Date: Sat, 11 Feb 2023 10:37:55 GMT
Content-Type: text/html; charset=utf-8
Content-Length: 1
Vary: Accept-Encoding
Connection: close

HTTP/1.1 200 OK
Server: Werkzeug/2.2.2 Python/3.9.16
Date: Sat, 11 Feb 2023 10:37:56 GMT
Content-Type: text/html; charset=utf-8
Content-Length: 1
Vary: Accept-Encoding
Connection: close

HTTP/1.1 429 TOO MANY REQUESTS
Server: Werkzeug/2.2.2 Python/3.9.16
Date: Sat, 11 Feb 2023 10:37:56 GMT
Content-Type: text/html; charset=utf-8
Content-Length: 117

in the same way the contrainer logs are showing the same

2023-02-11 10:37:54,359 INFO werkzeug Thread-34 : 172.17.0.1 - - [11/Feb/2023 10:37:54] "HEAD /api/fib/1 HTTP/1.1" 200 -
2023-02-11 10:37:54,778 INFO werkzeug Thread-36 : 172.17.0.1 - - [11/Feb/2023 10:37:54] "HEAD /api/fib/1 HTTP/1.1" 200 -
2023-02-11 10:37:55,196 INFO flask-limiter Thread-38 : ratelimit 2 per 1 second (172.17.0.1) exceeded at endpoint: fib
2023-02-11 10:37:55,197 INFO werkzeug Thread-38 : 172.17.0.1 - - [11/Feb/2023 10:37:55] "HEAD /api/fib/1 HTTP/1.1" 429 -
2023-02-11 10:37:55,616 INFO werkzeug Thread-40 : 172.17.0.1 - - [11/Feb/2023 10:37:55] "HEAD /api/fib/1 HTTP/1.1" 200 -
2023-02-11 10:37:56,035 INFO werkzeug Thread-42 : 172.17.0.1 - - [11/Feb/2023 10:37:56] "HEAD /api/fib/1 HTTP/1.1" 200 -
2023-02-11 10:37:56,455 INFO flask-limiter Thread-44 : ratelimit 2 per 1 second (172.17.0.1) exceeded at endpoint: fib
2023-02-11 10:37:56,456 INFO werkzeug Thread-44 : 172.17.0.1 - - [11/Feb/2023 10:37:56] "HEAD /api/fib/1 HTTP/1.1" 429 -

Honestly there are few pro and cons ... but i'd like to enter in those details with a more practical exmaple ...
just few concepts anyway are:

is using the same pool of connections
it's impacting the same metric that i'm using for autoscaling
is stealing resources from app
is really simple rate limit that can fight with others stuff

the sidecar way

Yes i know , this is a stretch, since we have service mesh , gateway etc etc that embrace this concept.
However, for a specific reason, i created just a sidecar container that can be reused without the needs to implement the infrastructure mentioned before

First of all the choice, tons of possibility, from nginx reverse proxy , to haproxy to whatever proxy ...
in this scenario i took the opportunity to use envoy , i've already used it with istio , and is really really flexible
(sometimes too much, in a way to be confused :-)

Anyway ... it's just a sidecar
In an existing app you have to add the following to add envoy

      - name: sidecar
        image: envoyproxy/envoy:v1.22-latest
        resources:
          limits:
            cpu: 100m
            memory: 150Mi
          requests:
            cpu: 30m
            memory: 55Mi
        ports:
          - name: http
            containerPort: 5002
            protocol: TCP
        volumeMounts:
          - name: sidecar-config
            mountPath: "/etc/envoy"
            readOnly: true
      volumes:
        - name: sidecar-config
          configMap:
            name: pytbakt-configmap

(great fantasy for the name :-)

and ... well the most important configuration is the pytbakt-configmap that is the envoy configuration

apiVersion: v1
kind: ConfigMap
metadata:
  name: pytbakt-configmap
  labels:
    app: pytbak
  namespace: pytbak
data:
  envoy.yaml: |
    static_resources:
      listeners:
      - name: listener_0
        address:
          socket_address:
            address: 0.0.0.0
            port_value: 5002
        filter_chains:
        - filters:
          - name: envoy.filters.network.http_connection_manager
            typed_config:
              "@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
              stat_prefix: ingress_http
              route_config:
                name: local_route
                virtual_hosts:
                - name: local_service
                  domains: ["*"]
                  routes:
                  - match:
                      prefix: "/"
                    route:
                      cluster: pytbak
              http_filters:
              - name: envoy.filters.http.local_ratelimit
                typed_config:
                  "@type": type.googleapis.com/envoy.extensions.filters.http.local_ratelimit.v3.LocalRateLimit
                  stat_prefix: http_local_rate_limiter
                  token_bucket:
                    max_tokens: 29
                    tokens_per_fill: 29
                    fill_interval: 1s
                  filter_enabled:
                    runtime_key: local_rate_limit_enabled
                    default_value:
                      numerator: 100
                      denominator: HUNDRED
                  filter_enforced:
                    runtime_key: local_rate_limit_enforced
                    default_value:
                      numerator: 100
                      denominator: HUNDRED
                  response_headers_to_add:
                  - append_action: OVERWRITE_IF_EXISTS_OR_ADD
                    header:
                      key: x-local-rate-limit
                      value: 'true'
                  local_rate_limit_per_downstream_connection: false

              - name: envoy.filters.http.router
                typed_config:
                  "@type": type.googleapis.com/envoy.extensions.filters.http.router.v3.Router

      clusters:
      - name: pytbak
        connect_timeout: 0.25s
        type: LOGICAL_DNS
        dns_lookup_family: V4_ONLY
        lb_policy: ROUND_ROBIN
        load_assignment:
          cluster_name: service_a
          endpoints:
          - lb_endpoints:
            - endpoint:
                address:
                  socket_address:
                    address: localhost
                    port_value: 5000

in a Human readable way ...

      - name: listener_0
        address:
          socket_address:
            address: 0.0.0.0
            port_value: 5002

envoy proxy is listening on port 5002

                - name: local_service
                  domains: ["*"]
                  routes:
                  - match:
                      prefix: "/"
                    route:
                      cluster: pytbak

no path or domain configuration , just handle all after /

      clusters:
      - name: pytbak
        connect_timeout: 0.25s
        type: LOGICAL_DNS
        dns_lookup_family: V4_ONLY
        lb_policy: ROUND_ROBIN
        load_assignment:
          cluster_name: service_a
          endpoints:
          - lb_endpoints:
            - endpoint:
                address:
                  socket_address:
                    address: localhost
                    port_value: 5000

something like reverse proxy configuration since the app is listening on port 5000

And now the Rate limiting section

              http_filters:
              - name: envoy.filters.http.local_ratelimit
                typed_config:
                  "@type": type.googleapis.com/envoy.extensions.filters.http.local_ratelimit.v3.LocalRateLimit
                  stat_prefix: http_local_rate_limiter
                  token_bucket:
                    max_tokens: 29
                    tokens_per_fill: 29
                    fill_interval: 1s
                  filter_enabled:
                    runtime_key: local_rate_limit_enabled
                    default_value:
                      numerator: 100
                      denominator: HUNDRED
                  filter_enforced:
                    runtime_key: local_rate_limit_enforced
                    default_value:
                      numerator: 100
                      denominator: HUNDRED
                  response_headers_to_add:
                  - append_action: OVERWRITE_IF_EXISTS_OR_ADD
                    header:
                      key: x-local-rate-limit
                      value: 'true'
                  local_rate_limit_per_downstream_connection: false

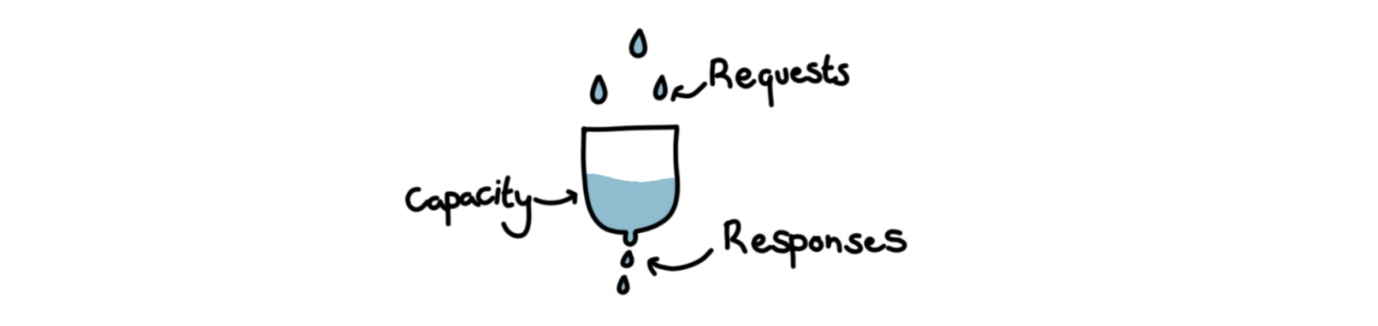

we have a bucket of 29 token , and every second it re-enable the 29 token in the bucket ... i mean ... 29req/second almost :-)

Handson

Again i changed the rate limit to 2req/second

                  token_bucket:
                    max_tokens: 2
                    tokens_per_fill: 2
                    fill_interval: 1s

in kubernetes pytbak pytbak-stable-bd648fd46-nj95m 2/2 Running 0 13s

kubectl describe pod pytbak-stable-bd648fd46-nj95m -n pytbak

Name:         pytbak-stable-bd648fd46-nj95m
Namespace:    pytbak
Priority:     0
Node:         instance-20220215-1853/10.0.254.135
Start Time:   Sat, 11 Feb 2023 11:19:45 +0000
Labels:       app=pytbak
              pod-template-hash=bd648fd46
              track=pytbak-stable
Annotations:  cni.projectcalico.org/podIP: 10.1.156.173/32
              cni.projectcalico.org/podIPs: 10.1.156.173/32
              prometheus.io/path: /metrics
              prometheus.io/port: 5000
              prometheus.io/scrape: true
Status:       Running
IP:           10.1.156.173
IPs:
  IP:           10.1.156.173
Controlled By:  ReplicaSet/pytbak-stable-bd648fd46
Containers:
  pytbak:
    Container ID:   containerd://9a54504e73a14746299366e2941b51f7069b6649208329a3f87708b053ef1eaf
    Image:          lgirardi/rest-test-multip:0.6
    Image ID:       docker.io/lgirardi/rest-test-multip@sha256:c94695a04fb3b862bfb576ead460aba3528bd098327f88122d087f48380506dd
    Port:           5000/TCP
    Host Port:      0/TCP
    State:          Running
      Started:      Sat, 11 Feb 2023 11:19:46 +0000
    Ready:          True
    Restart Count:  0
    Limits:
      cpu:     300m
      memory:  250Mi
    Requests:
      cpu:        30m
      memory:     125Mi
    Liveness:     http-get http://:5000/api/ delay=40s timeout=10s period=10s #success=1 #failure=3
    Readiness:    http-get http://:5000/api/ delay=5s timeout=15s period=10s #success=1 #failure=3
    Environment:  <none>
    Mounts:
      /var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-xrr7c (ro)
  sidecar:
    Container ID:   containerd://a0d45982aa56704983a89bacd664e5cbb8b38b1df943df92ad879e7c66986c22
    Image:          envoyproxy/envoy:v1.22-latest
    Image ID:       docker.io/envoyproxy/envoy@sha256:3b1e0114dbead3fbd9f561994f3894f5d113a815e023065cabdf0c48d55396ce
    Port:           5002/TCP
    Host Port:      0/TCP
    State:          Running
      Started:      Sat, 11 Feb 2023 11:19:47 +0000
    Ready:          True
    Restart Count:  0
    Limits:
      cpu:     100m
      memory:  150Mi
    Requests:
      cpu:        30m
      memory:     55Mi
    Environment:  <none>
    Mounts:
      /etc/envoy from sidecar-config (ro)
      /var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-xrr7c (ro)
Conditions:
  Type              Status
  Initialized       True
  Ready             True
  ContainersReady   True
  PodScheduled      True
Volumes:
  sidecar-config:
    Type:      ConfigMap (a volume populated by a ConfigMap)
    Name:      pytbakt-configmap
    Optional:  false
  kube-api-access-xrr7c:
    Type:                    Projected (a volume that contains injected data from multiple sources)
    TokenExpirationSeconds:  3607
    ConfigMapName:           kube-root-ca.crt
    ConfigMapOptional:       <nil>
    DownwardAPI:             true
QoS Class:                   Burstable
Node-Selectors:              <none>
Tolerations:                 node.kubernetes.io/not-ready:NoExecute op=Exists for 300s
                             node.kubernetes.io/unreachable:NoExecute op=Exists for 300s
Events:
  Type    Reason     Age    From               Message
  ----    ------     ----   ----               -------
  Normal  Scheduled  3m53s  default-scheduler  Successfully assigned pytbak/pytbak-stable-bd648fd46-nj95m to instance-20220215-1853
  Normal  Pulled     3m53s  kubelet            Container image "lgirardi/rest-test-multip:0.6" already present on machine
  Normal  Created    3m53s  kubelet            Created container pytbak
  Normal  Started    3m53s  kubelet            Started container pytbak
  Normal  Pulled     3m53s  kubelet            Container image "envoyproxy/envoy:v1.22-latest" already present on machine
  Normal  Created    3m53s  kubelet            Created container sidecar
  Normal  Started    3m52s  kubelet            Started container sidecar

With curl

$ while true;do curl -I http://oracolo.k8s.it/api/fib/1 && sleep 0.4;done

HTTP/1.1 200 OK
Date: Sat, 11 Feb 2023 11:29:48 GMT
Content-Type: text/html; charset=utf-8
Content-Length: 1
Connection: keep-alive
vary: Accept-Encoding
x-envoy-upstream-service-time: 2

HTTP/1.1 200 OK
Date: Sat, 11 Feb 2023 11:29:49 GMT
Content-Type: text/html; charset=utf-8
Content-Length: 1
Connection: keep-alive
vary: Accept-Encoding
x-envoy-upstream-service-time: 2

HTTP/1.1 429 Too Many Requests
Date: Sat, 11 Feb 2023 11:29:49 GMT
Content-Type: text/plain
Content-Length: 18
Connection: keep-alive
x-local-rate-limit: true

HTTP/1.1 200 OK
Date: Sat, 11 Feb 2023 11:29:50 GMT
Content-Type: text/html; charset=utf-8
Content-Length: 1
Connection: keep-alive
vary: Accept-Encoding
x-envoy-upstream-service-time: 2

HTTP/1.1 200 OK
Date: Sat, 11 Feb 2023 11:29:50 GMT
Content-Type: text/html; charset=utf-8
Content-Length: 1
Connection: keep-alive
vary: Accept-Encoding
x-envoy-upstream-service-time: 2

HTTP/1.1 429 Too Many Requests
Date: Sat, 11 Feb 2023 11:29:50 GMT
Content-Type: text/plain
Content-Length: 18
Connection: keep-alive
x-local-rate-limit: true

HTTP/1.1 200 OK
Date: Sat, 11 Feb 2023 11:29:51 GMT
Content-Type: text/html; charset=utf-8
Content-Length: 1
Connection: keep-alive
vary: Accept-Encoding
x-envoy-upstream-service-time: 2

HTTP/1.1 200 OK
Date: Sat, 11 Feb 2023 11:29:51 GMT
Content-Type: text/html; charset=utf-8
Content-Length: 1
Connection: keep-alive
vary: Accept-Encoding
x-envoy-upstream-service-time: 2

HTTP/1.1 429 Too Many Requests
Date: Sat, 11 Feb 2023 11:29:51 GMT
Content-Type: text/plain
Content-Length: 18
Connection: keep-alive
x-local-rate-limit: true

Both solution are working, different ways and different impacts on the app. In the next episode i will explain why i did this job , however, now in case u need a simple way to rate limit you app you can have a sidecar container out of the box.

the code way

Handson

the sidecar way

Handson

You should also read:
