Kubernetes postfix



Long story short my vps provider changed tha ammount for the small instance from 1$ to 3$
so i took the advantage to switch my postfix service from cloud to onprem.

Why, since the world is moving to cloud ?
Because my own domain is used just for alerting and small other stuff and 3$ month is creazy :)
Anyway i'll lost some good stuff like static ip and possibility ti have a ptr dns.
Shit happens it's just for my stuff.

However we have 3 different topics to describe in this project

  • what is an email
  • postfix configuration
  • postfix in kubernetes

what is an email

send email sometimes is a dedicated work in an enterprise company.
There are many aspect to consider , not only infrastructure , like che segmentation of domains strategy,
email answer engagement and each isp is using a different threashold to mark your email as a spam,
however now we will focus only on the generic configuration with some minimum requirements.

Here some topic that you probably know:

  • TLS (add an encrypted connection in delivery)
  • Sender-Id (mostly used for microsoft ecosystem)
  • PTR record (used to check the corrispondence of a real smtp)
  • SPF record (used on TXT level to define an whitelist of "smtp allowed to ...")
  • Dkim (a private and public certificate to match the smtp and emails)
  • Dmarc (a mix with SPF and Dkim to protect the domain from unauthorized use )

postfix configuration

The second one is more related to middleware behaviour
i have a domain "example.com" and i'd like to

  • receive email from and to this domain
  • have catchall system to do not configure any email account but using everything [email protected], [email protected], [email protected]
  • relay all the emails to my gmail account
  • reject the email that are tried to sent outside my chosed domains

For all those topics the main configuration is in virtual and transport map in postfix
There are some articles in internet, i'll avoid to reinvent hot water with the explanation.

postfix in kubernetes

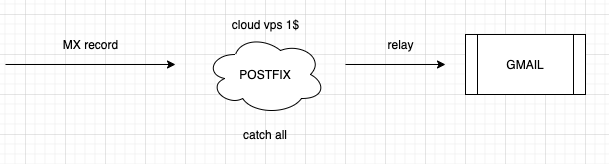

just as recap this was the configuration in the cloud vps

vps

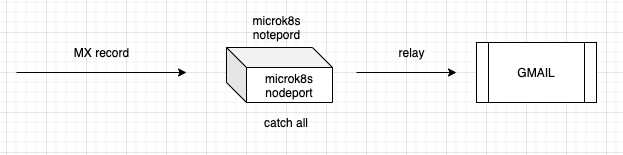

now i just whitched the MX to my own microk8s lab

microk8s

However , inside the box a lot of implementation way can be taken

Scenario 1:

you can build an image for each dedicate purpose

  • postfix
  • rsyslog
  • opendkim
  • tls

Scenario 2:

looking the configuration adopted in Scenario 1 , you can add an ingress tcp forward where
you can also add a tls layer with cert-manager (the new kube-lego).

Scenario 3:

Scenario 2 plus external storage for logs
etc etc

Scenario Lazy:

Embedded docker images with all you need with a node port (used only because i have a standalone kubernetes node).

Well having everything in one single container the docker image reflect the pachage used in a virtual machine

FROM debian:buster
MAINTAINER lgirardi <[email protected]>

EXPOSE 25/tcp

RUN apt-get -y update && apt-get -yq install \
	postfix \
	bsd-mailx \
	opendkim \
	opendkim-tools \
	sasl2-bin \
	rsyslog \
        supervisor


# Add files
ADD run.sh /opt/run.sh

# Run
CMD /opt/run.sh;/usr/bin/supervisord -c /etc/supervisor/supervisord.conf

where the run.sh is the supervisord daemon managing the process.

  • postfix
  • rsyslog
  • opendkim

The structure used is done to leave the configuration as a configmap and secrets
this will help in case you have to tune your system whiout regenerate the images that honestly make no sense to be build each deploy.

As you see the deployment files has a huge number of volumes

apiVersion: apps/v1
kind: Deployment
metadata:
  name: postfix
  namespace: postfix
spec:
  replicas: 1
  strategy:
    type: RollingUpdate
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app: postfix
  template:
    metadata:
      labels:
        app: postfix
    spec:
      containers:
      - name: postfix
        image: lgirardi/kubernetes-postfix:v0.2
        lifecycle:
          postStart:
            exec:
              command: [ "bin/bash", "-c", "postmap /etc/postfix/virtual && postmap /etc/postfix/transport && supervisorctl restart postfix" ]
        securityContext:
          capabilities:
            add:
            - NET_ADMIN
        ports:
        - name: smtp
          containerPort: 25
        volumeMounts:
        - name: opendkim-key
          mountPath: /etc/mail/dkim-k8s/keys/YOUR_DOMAIN/YOUR_DOMAIN.private
          subPath: opendkim-key
        - name: ca-crt
          mountPath: /etc/postfix/tls/ca.crt
          subPath: ca-crt
        - name: ca-key
          mountPath: /etc/postfix/tls/ca.key
          subPath: ca-key
        - name: postfix-transport
          mountPath: /etc/postfix/transport
          subPath: transport
        - name: postfix-virtual
          mountPath: /etc/postfix/virtual
          subPath: virtual
        - name: postfix-headerchecks
          mountPath: /etc/postfix/header_checks
          subPath: header_checks
        - name: postfix-maincf
          mountPath: /etc/postfix/main.cf
          subPath: main.cf
        - name: postfix-opendkimconf
          mountPath: /etc/opendkim.conf
          subPath: opendkim.conf
        - name: postfix-keytable
          mountPath: /etc/opendkim/KeyTable
          subPath: KeyTable
        - name: postfix-signingtable
          mountPath: /etc/opendkim/SigningTable
          subPath: SigningTable
        - name: postfix-trustedhosts
          mountPath: /etc/opendkim/TrustedHosts
          subPath: TrustedHosts
      volumes:
        - name: postfix-transport
          configMap:
            name: postfix-conf
            items:
            - key: transport
              path: transport
        - name: postfix-virtual
          configMap:
            name: postfix-conf
            items:
            - key: virtual
              path: virtual
        - name: postfix-headerchecks
          configMap:
            name: postfix-conf
            items:
            - key: header_checks
              path: header_checks
        - name: postfix-maincf
          configMap:
            name: postfix-conf
            items:
            - key: main.cf
              path: main.cf
        - name: postfix-opendkimconf
          configMap:
            name: postfix-conf
            items:
            - key: opendkim.conf
              path: opendkim.conf
        - name: postfix-keytable
          configMap:
            name: postfix-conf
            items:
            - key: KeyTable
              path: KeyTable
        - name: postfix-signingtable
          configMap:
            name: postfix-conf
            items:
            - key: SigningTable
              path: SigningTable
        - name: postfix-trustedhosts
          configMap:
            name: postfix-conf
            items:
            - key: TrustedHosts
              path: TrustedHosts
        - name: opendkim-key
          secret:
            secretName: postfix-secret
        - name: ca-crt
          secret:
            secretName: postfix-secret
        - name: ca-key
          secret:
            secretName: postfix-secret

Here we have the configuration for:

  • main.cf
  • transport
  • virtual
  • header_checks
  • opendkim.conf
  • KeyTable
  • SigningTable
  • TrustedHosts

You can change this aspect , is mostly related to the infrastructure where you fit the pod
and the company CI/CD

Remember to ADD your right values inside secrets and configmap where you have CAPS like YOUR_DOMAIN

running the apply on kubernetes folder you will have the pod running
postfix postfix-7d664f786c-rmf54 1/1 Running 0 29m

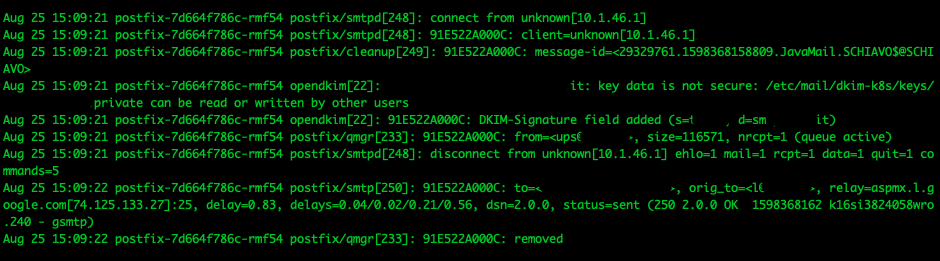

and loogking the logs i can see

postfixlog

The key data is not secure just a working because i've enabled this option in the configmap RequireSafeKeys false
but the certificate is applied opendkim[22]: 91E522A000C: DKIM-Signature field added

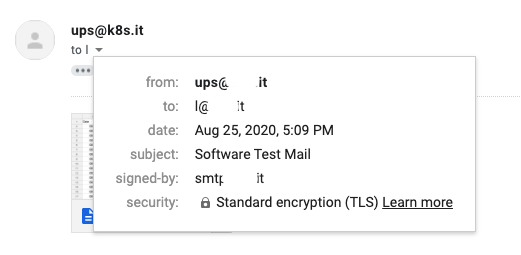

Last one is the check on the client side with the righ option enabled

clientemail

Conclusion

You can add postfix infrastructure to kubernetes with no problems at all ,
this project is a prototype , in a production infrastructure you can work around this to let it rock solid and scalable
