Kubernetes nstats

2021-02-22 824 words 4 minutes

Contents

Here we go… another weird sidecar container.

Motivations

I’ve always been interested in the observability area. There are many aspects that improve performances and fix bugs. One of the most interesting is network usage.

This is not about network issues:

It’s about understanding where bandwidth is actually going.

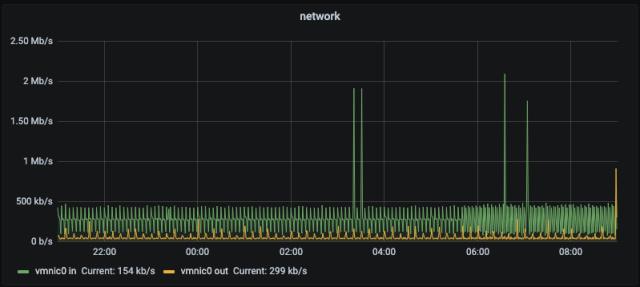

You’re probably used to seeing something like this for your VMs:

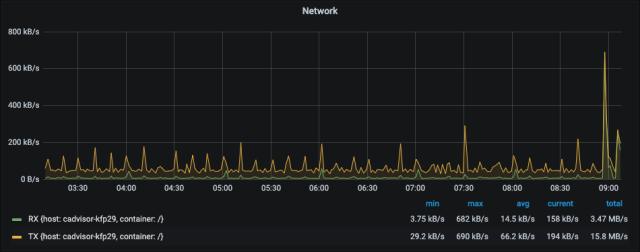

Traditional IN and OUT. With Kubernetes you get the same view at the pod level:

Still just IN and OUT. But where is this bandwidth actually being used? Which destinations? Which services?

The answer is not easy. Your options are:

Profile the application
Profile the VM/pod
Have a dedicated APM
Have a service mesh installed

Service mesh is a good tool but for the reasons I explained elsewhere, you should promote it carefully. It can answer my question but it’s overkill for this specific purpose. APM depends on company budget.

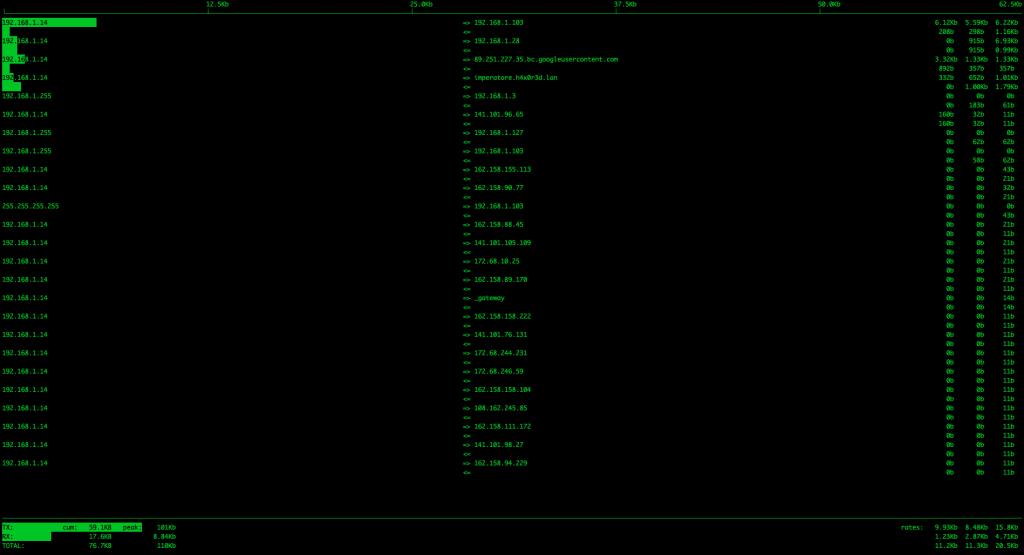

Even in 2021, I still reach for iftop to understand network usage in real time. The problem is that iftop is a point-in-time view — I have no long-term visibility.

Goals

Monitor a Kubernetes pod network with a sidecar container
Know src-dst of pod connections
Use it as a sidecar
Try to find a win-win solution (aka quick and dirty)

Implementation

Project: https://github.com/lorenzogirardi/Kubernetes-nstats

A colleague of mine did amazing work with a Go container for this kind of observability. I wanted to build a prototype that could work quickly and I found this interesting project as a starting point. Most of the heavy lifting was already there:

Create an iftop static dump
Filter the results into a matrix
Build an InfluxDB layout and POST directly to the database

Let me walk through the structure:

|-- Dockerfile
|-- README.md
|-- cron.sh
|-- crontab
|-- format.py
`-- parse.awk

Dockerfile

FROM debian:stretch-slim
MAINTAINER lgirardi <[email protected]>

RUN apt-get -y update && apt-get -yq install \
    iftop \
    python3 \
    cron \
    curl

RUN touch /var/log/cron.log
RUN mkdir /code
WORKDIR /code
ADD . /code/
RUN chmod +x /code/cron.sh
COPY crontab /etc/crontab
RUN crontab /etc/crontab
CMD env > /code/env.sh ; cron -f

CRON?! Yes, it’s a prototype. Kubernetes CronJobs aren’t effective for this scope. The most interesting part is env > /code/env.sh — this creates an environment file from Docker environment variables, which we use later to read configuration without relying on shell inheritance.

cron.sh

#!/bin/bash
/usr/sbin/iftop -nNb -i $(grep IFACE /code/env.sh |cut -d= -f2) -s 10 -o 10s -t -L 100 2>/dev/null |/usr/bin/awk -f /code/parse.awk |/usr/bin/python3 /code/format.py |/usr/bin/curl -i -XPOST 'http://'"$(grep INFLUX /code/env.sh |cut -d= -f2)"'/write?db='"$(grep IDB /code/env.sh |cut -d= -f2)"'' --data-binary @-

parse.awk

#!/bin/awk -f
BEGIN {
    numlist = 0
    nblines = 15
}
{
    if ( numlist == 1 && $1 == "--------------------------------------------------------------------------------------------" ) {
        exit
    }

    if ( numlist == 0 && $1 == "--------------------------------------------------------------------------------------------" ) {
        numlist = 1
        next
    }

    if ( numlist == 1 ) {
        if ( $0 ~ "=>" && nblines > 0 ) {
            SENDER = $2
            STX = pfFormat($5)
            getline
            RECEIVER = $1
            RTX = pfFormat($4)
            printf "%s,%s,%s,%s\n", SENDER, RECEIVER, RTX, STX
            nblines--
            if ( nblines < 1 ) {
                exit
            }
        }
        next
    }
}
END {
}

function pfFormat(str) {
    sub("b","",str)
    return str
}

format.py

#!/usr/local/bin/python3

import csv
import socket
import sys
import re

def getHostName(ipAddress):
    hostName = ipAddress
    try:
        hostName = socket.gethostbyaddr(ipAddress.strip())[0]
    except socket.herror:
        pass
    return hostName

def prefixToMultiplier(prefix):
    multiplier = {
        'K': 1000,
        'M': 1000000,
        'G': 1000000000
    }
    return multiplier.get(prefix, 1)

def expandBitRate(bitRate):
    groups = re.match(r"(\d+\.?\d*)(?:(K|M|G)?)", bitRate).groups()
    multiplier = 1.0
    if len(groups) > 1:
        multiplier = prefixToMultiplier(groups[1])
    value = float(groups[0])
    return value * multiplier

host = socket.gethostname()

with sys.stdin as csvfile:
    csvReader = csv.reader(csvfile)
    for row in csvReader:
        (senderIp, receiverIp, receiveRate, sendRate) = (row[0], row[1], expandBitRate(row[2]), expandBitRate(row[3]))
        sender = getHostName(senderIp)
        receiver = getHostName(receiverIp)
        print("nstat,hosts=" + host +",sender=" + sender + ",receiver=" + receiver + " sendRate=" + str(sendRate) + ",receiveRate=" + str(receiveRate))

crontab

SHELL=/bin/bash
PATH=/usr/local/sbin:/usr/local/bin:/sbin:/bin:/usr/sbin:/usr/bin
* * * * *  sh -x /code/cron.sh >> /var/log/cron.log 2>&1
#

How It Works

The pipeline is:

/usr/sbin/iftop -nNb -i $IFACE -s 10 -o 10s -t -L 100 2>/dev/null

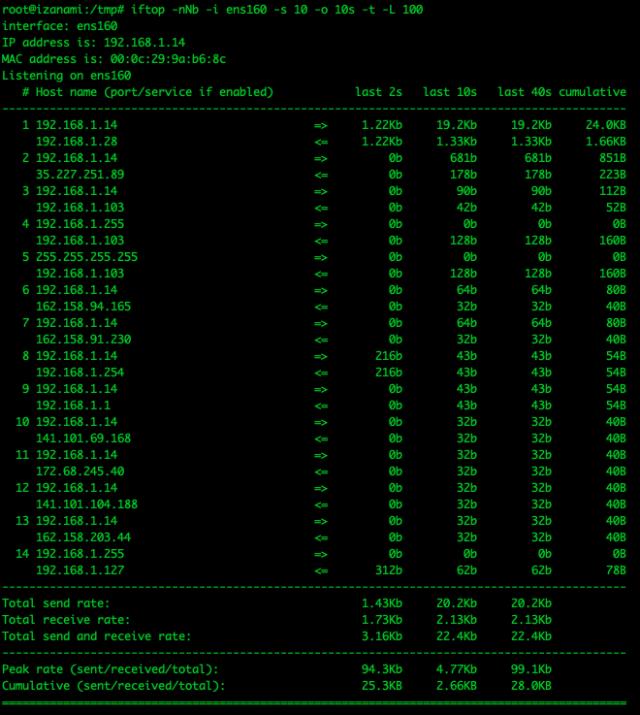

This runs iftop for a 10-second window, sorted on the last-10-seconds column:

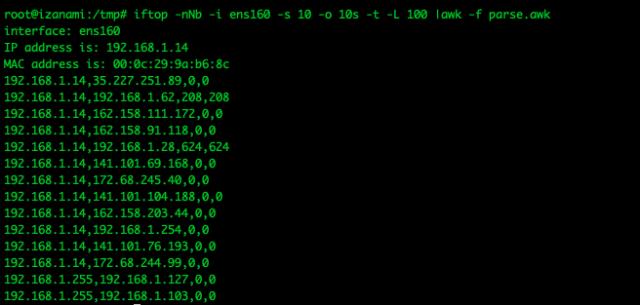

Then awk parses the output:

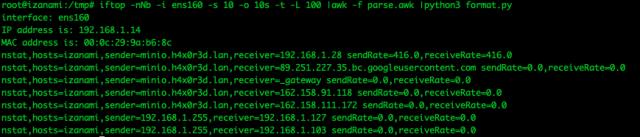

Python formats it into InfluxDB line protocol:

And finally curl ships it to InfluxDB:

curl -i -XPOST 'http://$INFLUX/write?db=$IDB' --data-binary @-

Results

Build and run locally:

docker build -t nstats .
docker run -d -e IFACE=eth0 -e INFLUX=192.168.1.28:8086 -e IDB=test nstats

Or add it to an existing Kubernetes pod as a sidecar — no refactoring required:

containers:
- image: lgirardi/py-test-backend
  imagePullPolicy: Always
  name: pytbak
  # ... rest of existing container spec ...
- env:
  - name: IFACE
    value: eth0
  - name: INFLUX
    value: 192.168.1.28:8086
  - name: IDB
    value: test
  image: lgirardi/nstats
  imagePullPolicy: Always
  name: nstats

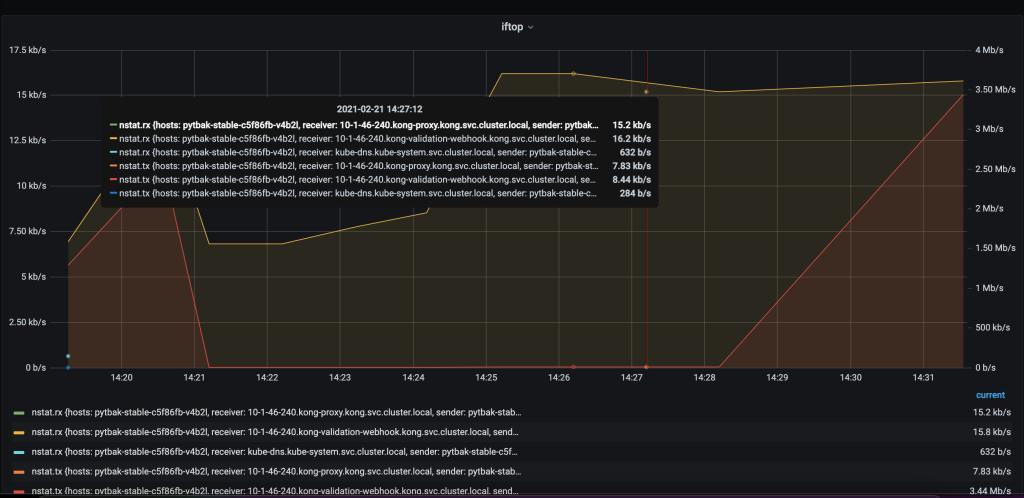

And in Grafana you get visibility into which hosts your pod is actually talking to, with send and receive rates per connection:

This is what was missing. Now when someone asks “where is this bandwidth going?” you have an answer.
